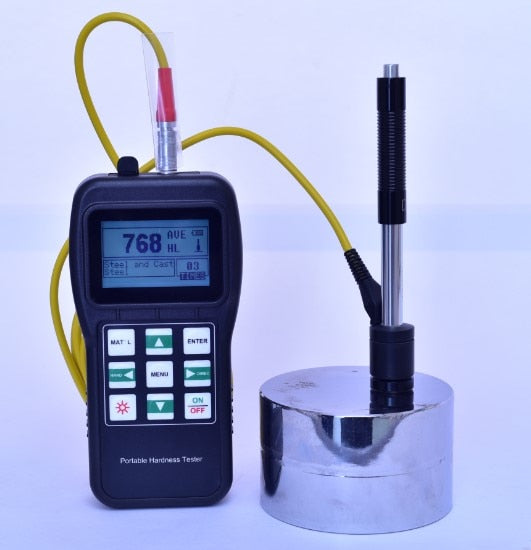

Hardness Tester TMTech - THL210

Hardness Tester TMTech - THL210

Features

LCD display of 128×64 matrix with backlight, showing all functions and parameters.

Converts to all common hardness scales (HV,HB,HRC,HRB,HRA,HS).

English displaying and easy and convenient menu operation.

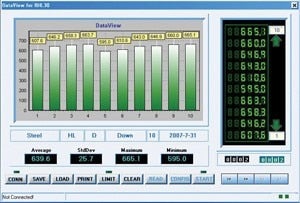

Powerful PC Software available and USB 1.0 interface and USB with Protective Membrane.

7 types of Impact Device optional, which don't need to be recalibrated when changing them.

Memory of 600 groups data（impact times:32～1）.

Lower limit setting and sound alarm.Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece.

Printer be separated from main unit and copies of testing results can be printed as required.

Normal battery AAA and big power store while USB connected and charging controlling circuit.

Inbuilt function of Software Calibration.

 Specifications

Hardness scale - HL, HB, HRB, HRC, HRA, HV, HS

Memory - 48～600 groups （impact times: 32～1）

Measuring range - HLD（170～960）See below table 1 and table 2

Accuracy - ±6HLD (760±30HLD) error of displayed value

Standard Impact Device - D

Optional Impact Devices - DC/D+15/G/C/DL

Min. Radius of Workpiece - Rmin = 50mm (with special support ring Rmin= 10mm)

Min. Workpiece weight - 2~5kg on stable support - 0.05~2kg with compact coupling

Min. Workpiece thickness - 5mm (Impact Devices D/DC/DL/D+15) - 1mm (Impact Device C) - 10mm (Impact Device G)

Min. thickness of hardened surface - 0.8mm

Power - Normal AA Battery

Continuous Working time - approx. 100 h (no back light off)

Operating temperature - 0~40℃

Relative humidity - ≤90%

Overall dimensions - 125*67*31mm (main unit)

Weight - 0.3kg (main unit)

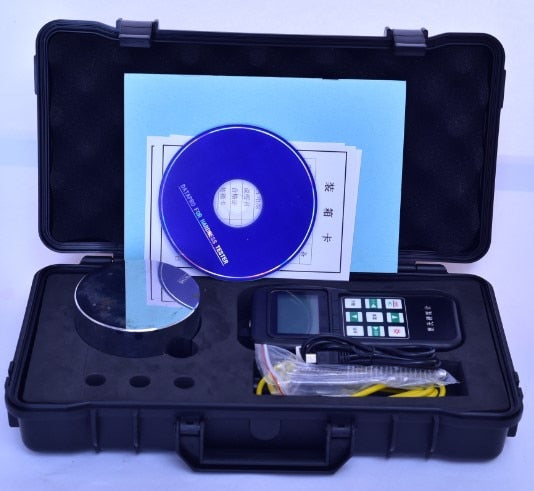

Standard Configuration

THL210 Main Unit

Impact Device Type D

Leeb Standard Test Block

Cleaning Brush

Supporting Ring

Communication Cable

Manual

Carrying Case

THL210 DataPro Software (USB)

Optional - Mini printer
